6000 series hardware

Inspired by the hardware of the 50’s and 60’s, 6000 Series hardware features a lightweight aluminum flush base and music stand-style folding design.
It’s the lightest hardware we offer, yet performs surprisingly well for Rock players as well.

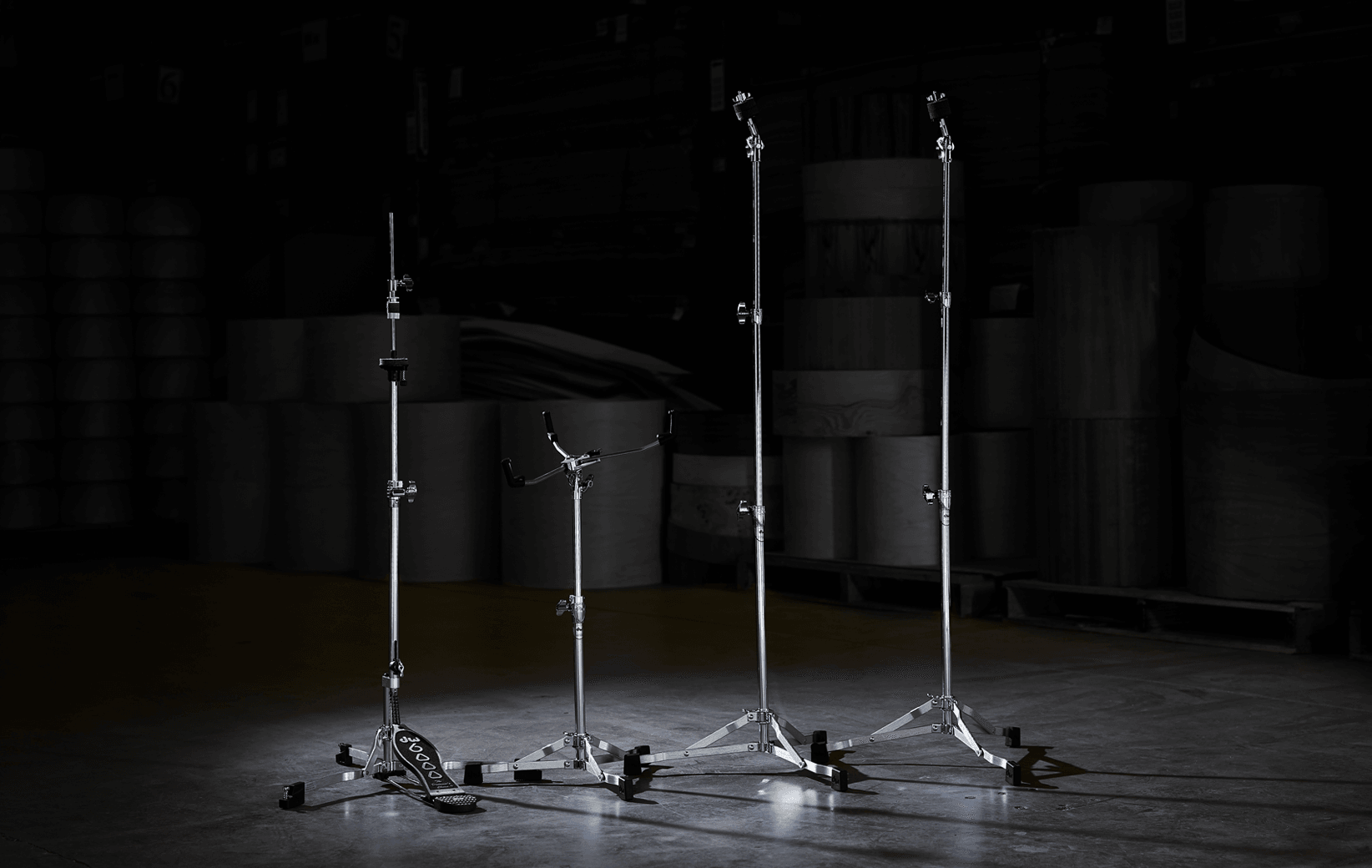

6000 Series Ultralight™ Models





A scaled down version of the popular line-up of 6000 Series retro-styled, flush-base hardware, 6000 Series Ultralight™ stands utilize smaller diameter, lighter gauge steel tubing and a low mass tube joint for optimal portability. Other marquis features include a new Glide Tilter™ for exacting adjustment of cymbal and snare drum angles. An "old-school" snare basket design get a modern, spring-loaded make over and the hi-hat stand is as smooth and effortless as its 6000 cousin. Ultralight™ hardware is a perfect for bop kits, vintage sets and gigging drummers everywhere.

Stands sold separately and as a 4-piece pack (DWCP6000ULPK) including a carrying bag;
(2) 6710UL Cymbal Stands, (1) 6300UL Snare Stand, (1) 6500UL Hi-Hat Stand, and (1) DSCP6000UL Hardware Bag.
DSCP6000UL Hardware Bag dimensions (approximate): internal L 27" x W 10" x H 8" | external L 29" x W 12" x H 10"

[6500UL 5.07 lbs. (2.3 kg.)] [6300UL 2.54 lbs. (1.15 kg.)] [6710UL 2.76 lbs. (1.25kg.)] [PACK 18.19 lbs. (8.25kg)]

The 6000 Ultralight™ Hardware is
NOW AVAILABLE ONLINE




Features


Flush Base Design
Low-profile and lightweight aluminum Flush Base Design.
UL Joints
Ultralight™ Joints are smooth, strong, and lightweight
Offset Direct Pull Action
Offset Direct Pull Action provides direct pedal-to-hat response. Dual Chain. Easily-adjustable Spring Tension Adjuster
Glide Tilter™
Ultralight™ Glide Tilter™ angle adjustment
Lightweight Clutch
Ultralight™ Clutch comes standard and allows you to dial in closed "sloshyness"
6300UL Basket
6300UL Basket Grips are lightweight, secure, and stylish
6300UL Spring Basket
6300UL Basket Spring Adjustment is quick, effortless, and very lightweight

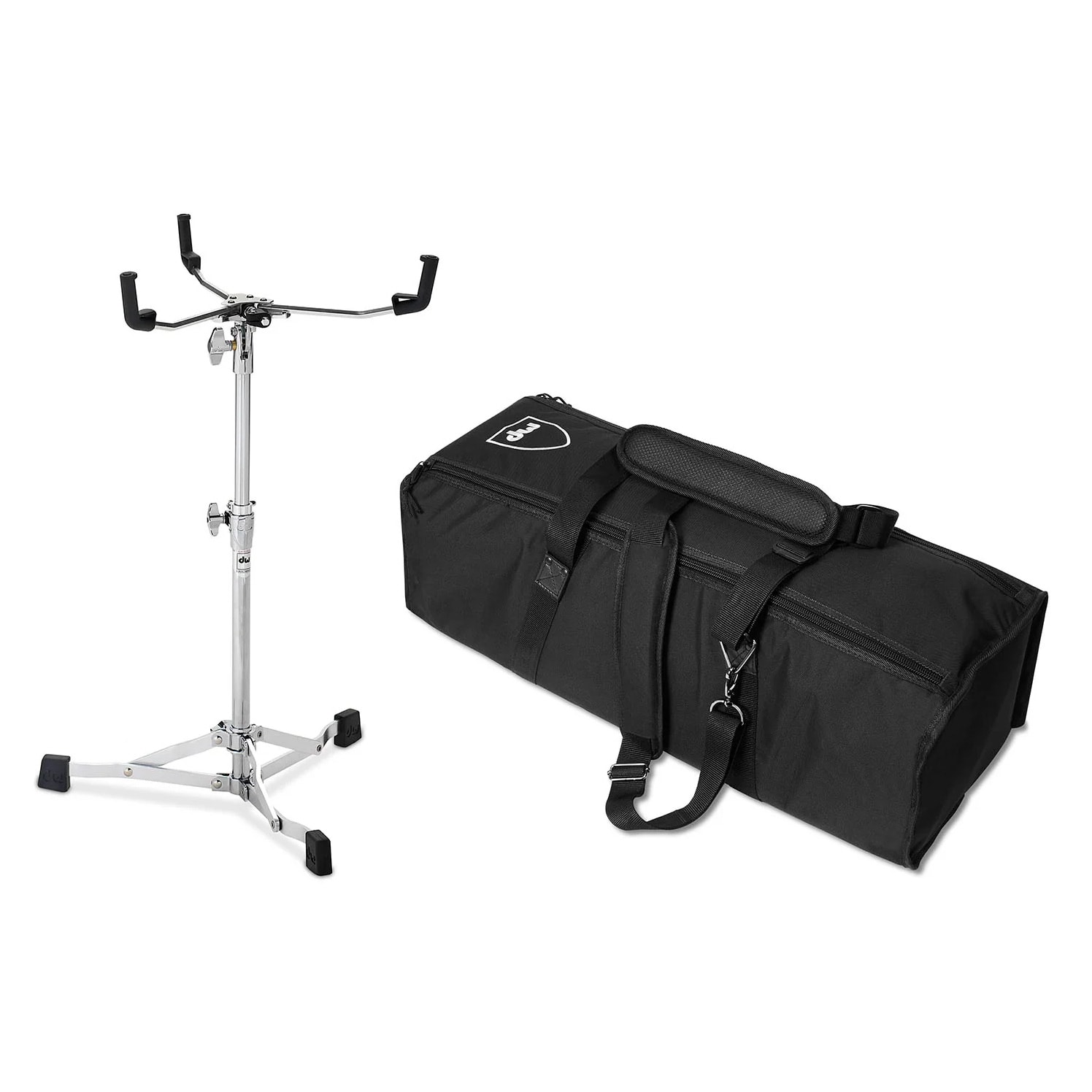

6000UL Bag
DWCP6000ULPK Pack with Bag (DSCP6000UL) is perfect for gigging drummers
back to top

6500 Model Hi Hat




Sturdy and easy to position, the 6500 features a unique direct-pull rod linkage for smooth effortless action.

[5/8" upper tube] [3/4" base tube]

[wt. 6.7 lbs.] [max playing height: 35"] [min playing height: 28"]
*playing height varies depending on cymbals

The 6500 Hi-Hat is
NOW AVAILABLE ONLINE




Features


Flush Base Design
Low-profile and lightweight aluminum Flush Base Design.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints to guarantee 100% repeatable, precise height settings every time.
Offset Direct Pull Action
Offset Direct Pull Action provides direct pedal-to-hat response. Easily-adjustable knurled metal Spring Tension Adjuster
Ball Bearing Hinge
DW's patented Delta Ball-Bearing Hinge is a state-of-the-art lightweight aluminum design that incorporates ball bearings at both sides.
SM379 Locking Clutch
The SM379 Locking Clutch comes standard and allows you to dial in closed "sloshyness" and lock it so it doesn't come loose.
Upper Rods
Upper Rods come standard in two lengths (21" and 15"), allowing you to customize the Hi-Hat Stand for your specific needs.
back to top

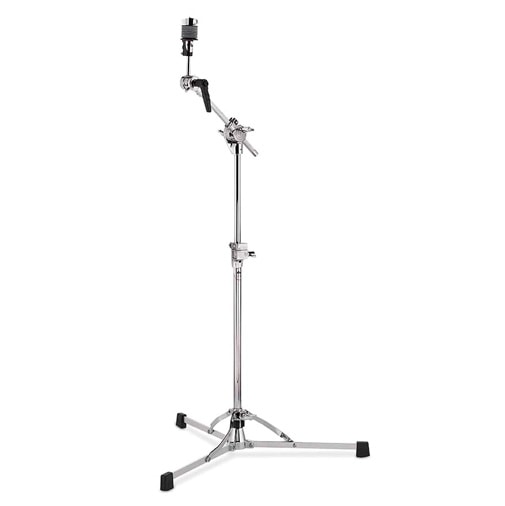

6700 & 6710 Cymbal Stands




For the lightest trap case imaginable, go with vintage-looking 6000 cymbal stands. Included are toothless Tilters with Techlock and Adjustable Cymbal Seats.

[1/2" upper tube] [5/8" middle tube] [3/4" base tube] [6700: 1/2" boom arm]

6000 Series Cymbal Stands are
NOW AVAILABLE ONLINE




Features

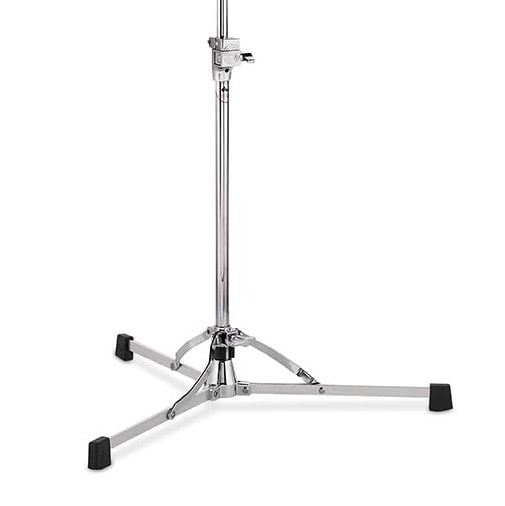

Flush Base Design
Low-profile and lightweight aluminum Flush Base Design.
Adjustable Cymbal Seat
The patented Cymbal Seat Adjustment can be raised or lowered and quickly locked in place to adjust cymbal movement as needed. (U.S. Patent No. 4889028)
Integrated Seat Felt
Integrated Cymbal Seat & Wingnut Felt keep your parts on the stand or in your hand... not on the floor, where they always seem to diappear!

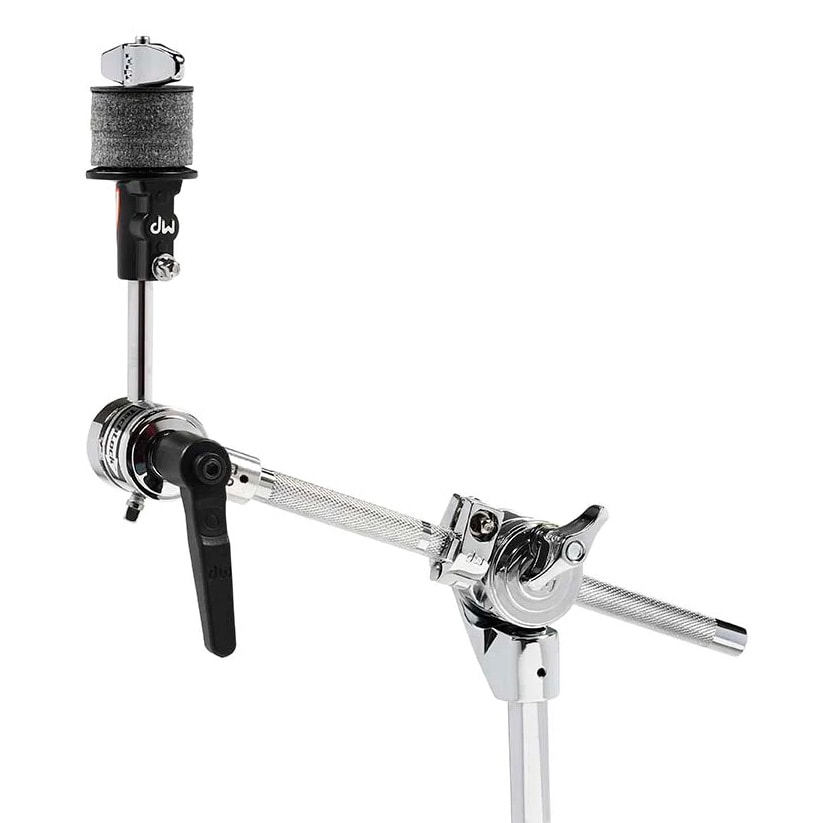

Infinite Toothless Tilter
The Toothless Tilter with TechLock® allows for infinite adjustment and secure positioning.
TechLock®
The TechLock® secondary drum key locking system is inspired by working drum techs. On all DW 9000 hardware, it's a safe-guard against slippage.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints to guarantee 100% repeatable, precise height settings every time.
back to top

6300 Snare Stand




Stylish retro-looks and a reliable lightweight design make this a stand for around-town gigs or the big tour.

[5/8" upper tube] [3/4" base tube] [17" min / 25" max height]

[wt. 5.8 lbs.] [max basket height: 27.5"] [min basket height: 19.5"]

The 6300 Snare Stand is
NOW AVAILABLE ONLINE




Features


Flush Base Design
Low-profile and lightweight aluminum Flush Base Design.
Recess Locking Wing Screw
The snare drum angle adjustment can be firmly locked with the Recess Locking Wing Screw.
Hinged Memory Locks
Hinged Memory Locks are included at tube joints to guarantee 100% repeatable, precise height settings every time.
back to top
